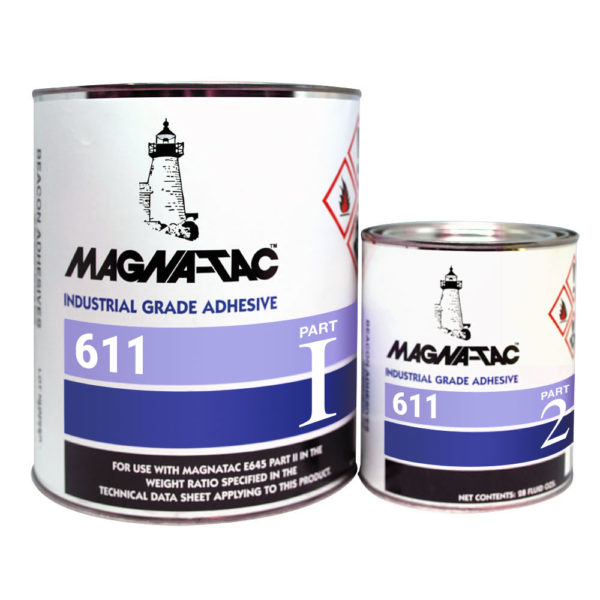

Magna-Tac M611
Two-Part Heat Cure Epoxy
Request Information
Call us for more information at
914-699-3400
Or Fill out the form below:
Magna-Tac M-611 is a 100% -solids, two-component, solvent-free, formulated epoxy adhesive in paste form specifically designed for metal-to-metal applications and for bonding other rigid materials such as glass, plastics, wood and structural laminates based on glass or fiber reinforced melamine, silicone, polyester, phenolic, epoxy, etc., resins. This adhesive may be cured at room temperature or at elevated temperatures, depending on manufacturing conditions, properties desired and on service requirements for the finished assembly.
Magna-Tac M-611 and CH-16 are specified by Hamilton Standard Div. of United Technologies Corp. for the bonding of treated Teflon to anodized aluminum propeller blade shanks.
Magna-Tac 611 and CH-1 is used on antenna bases for aerospace, aviation, automotive, drones, and other industries which require antenna connection.
Industry Applications
View product applications by industry:
Mix Ratio:
M611 with CH-1: 100 parts M611 and 6parts CH-1
M611 with CH-16: 100 parts M611 and 32parts CH-16
Strength:
M611 with CH-1: 100 parts M611 and 6parts CH-1 = 2500 psi
M611 with CH-16: 100 parts M611 and 32parts CH-16 = 2500 psi
Pot Life:
M611 with CH-1: 100 parts M611 and 6parts CH-1 = @77F 2.5 hours (1qt)
M611 with CH-16: 100 parts M611 and 32parts CH-16 = @77F 20 minutes (1qt)
NSN:
MAGNA-TAC M611 CH1 8040-00-081-2166
MAGNA-TAC M611 CH1B 8040-00-200-4390
MAGNA-TAC M611 (Quart) 8040-00-270-8136
MAGNA-TAC M611 (Pint) 8040-00-691-1322
Specifications:
Magna-Tac M-611 and CH-16 are specified by Hamilton Standard Div. of United Technologies Corp. for the bonding of treated Teflon to anodized aluminum propeller blade shanks.
